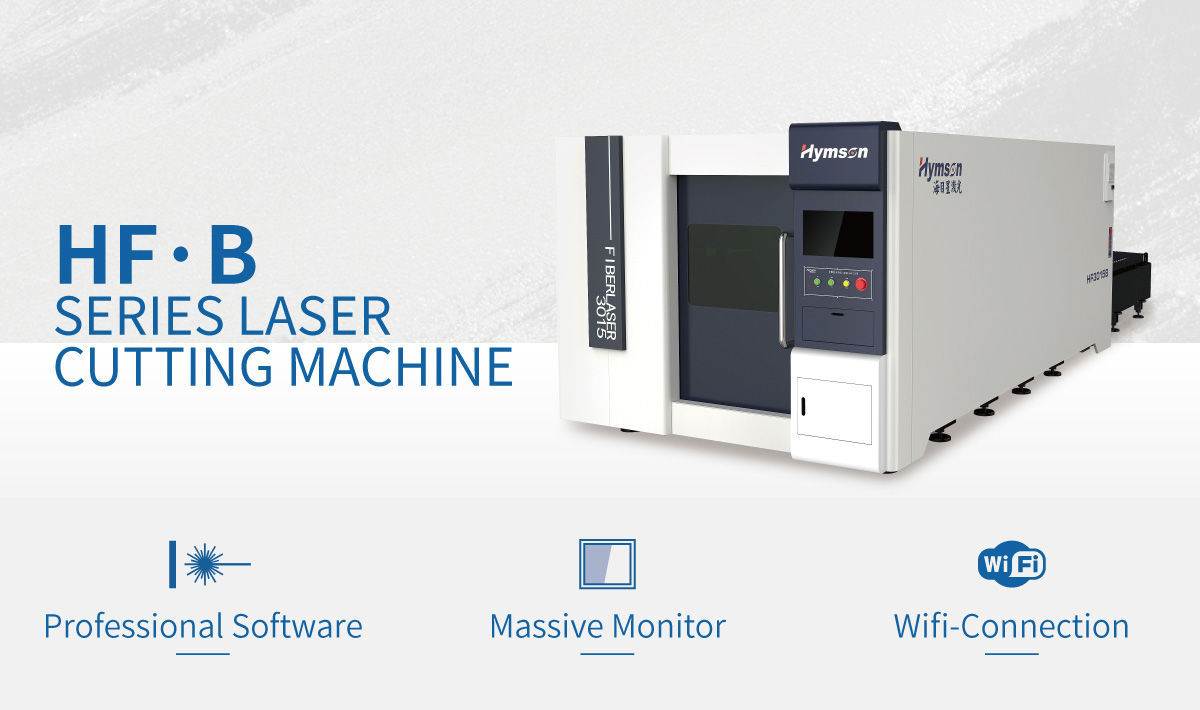

The new HF · B series laser intelligent cutting equipment is the ideal economical machine for high-quality sheet metal laser cutting.
Low operation and maintenance cost, high-quality laser cutting can be easily achieved. Varies of materials with different thickness can be handle with barely help from man.

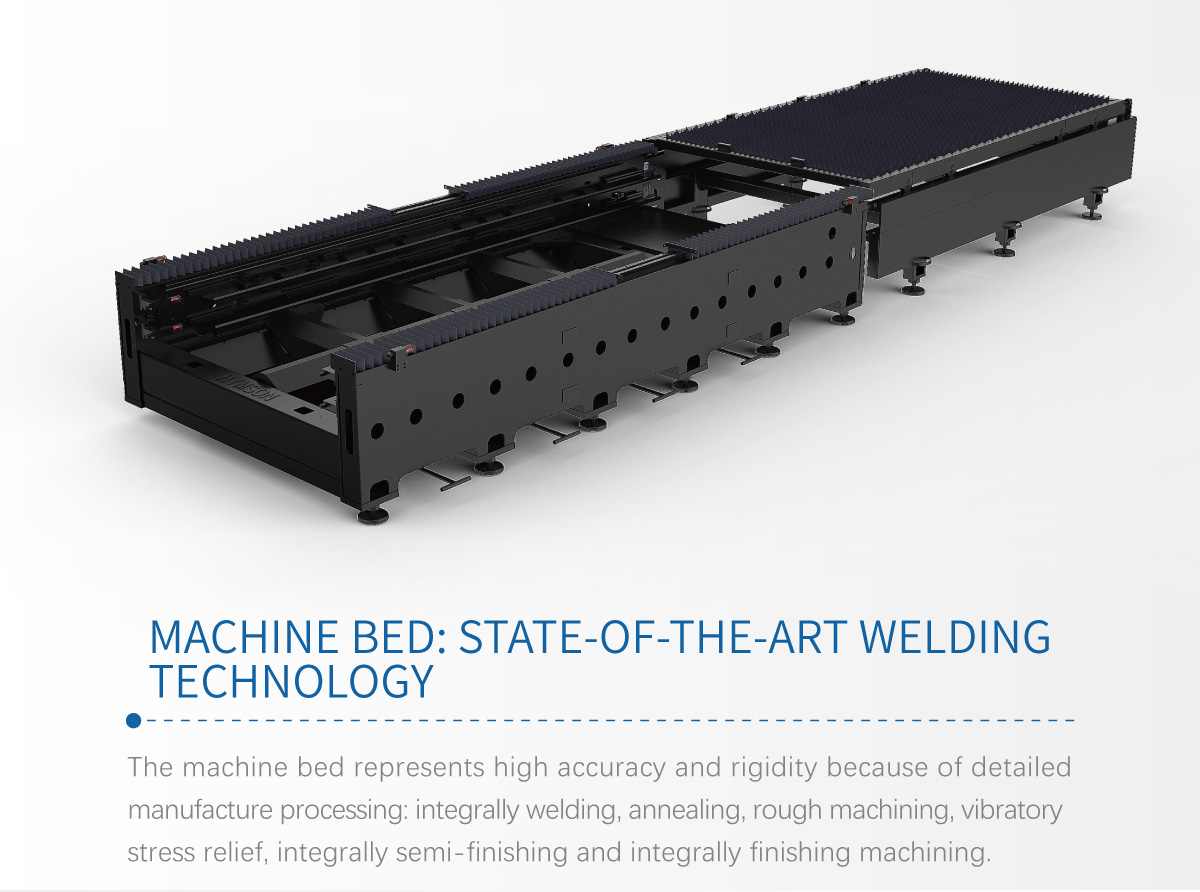

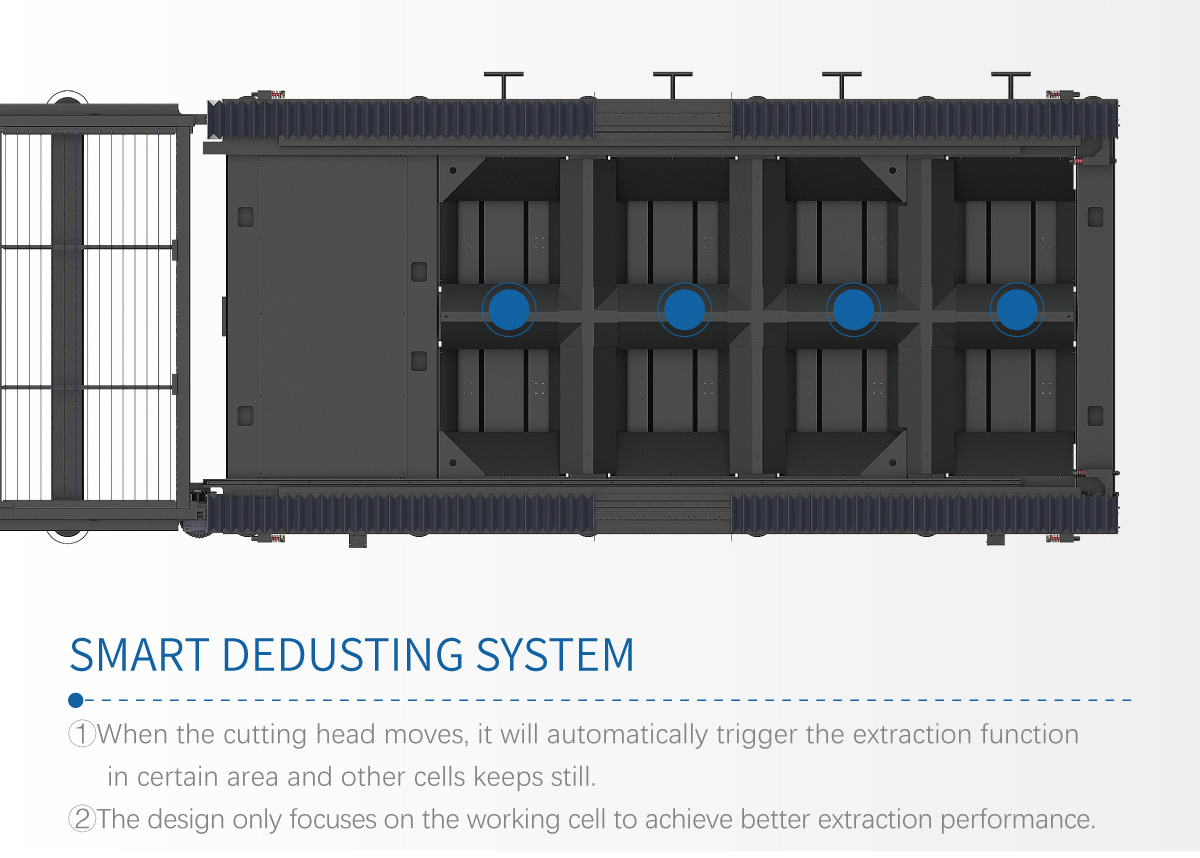

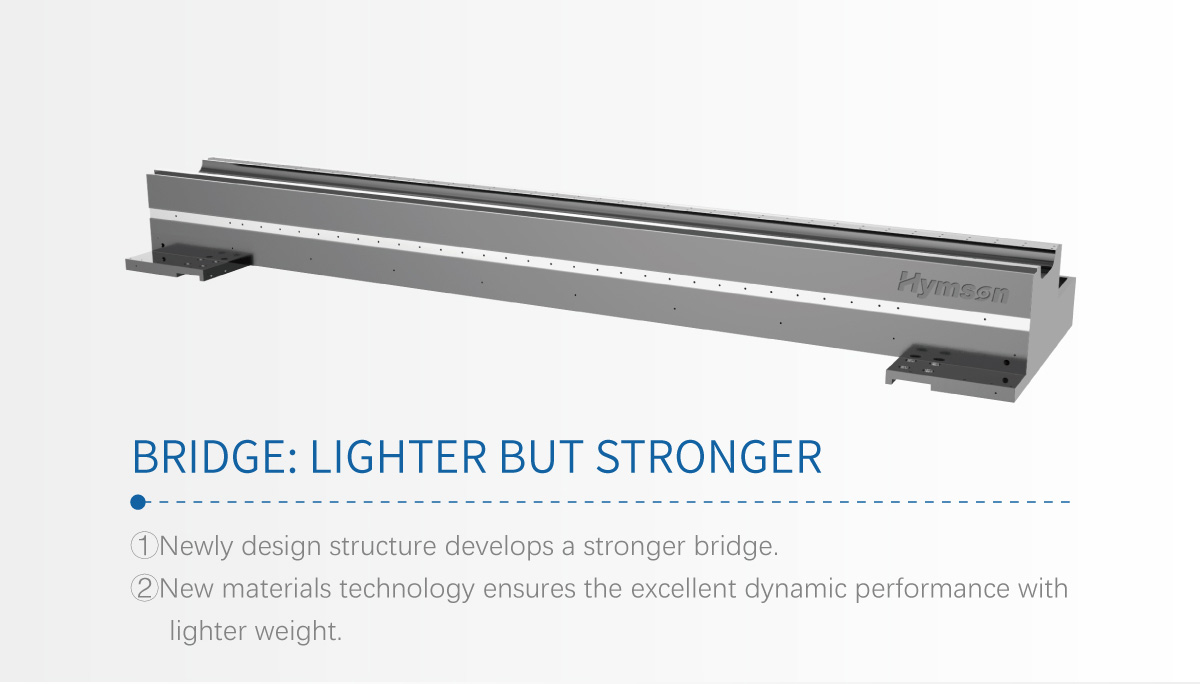

Industrial-grade high-strength honeycomb structure machine tools ensure long-term stable operation of equipment. Enclosed protective cover and intelligent exhaust system provide extremely high standard laser and production safety protection.
Parm.
| Laser Resonator | |
| Type | Fiber Laser |
| Power | 1500-3000 |
| Features | |
| Model | HF3015B |
| Working Range（mm） | 3000 x 1500 |
| Maximum Weight（kg） | 8500 |
| Maximum Workpiece Weight（kg） | 800 |
| Dimensions（mm） | |
| Lenght | 8330 |
| Width | 5700 |
| Height | 2450 |
| Max.Workpiece Thickness(3000W) | |
| Mild steel | 20mm |
| Aluminum | 10mm |
| Stainless steel | 10mm |
Please contact us for more detail information via email: info@gzhymson.com. Thank you.
Mgt.
CNC System

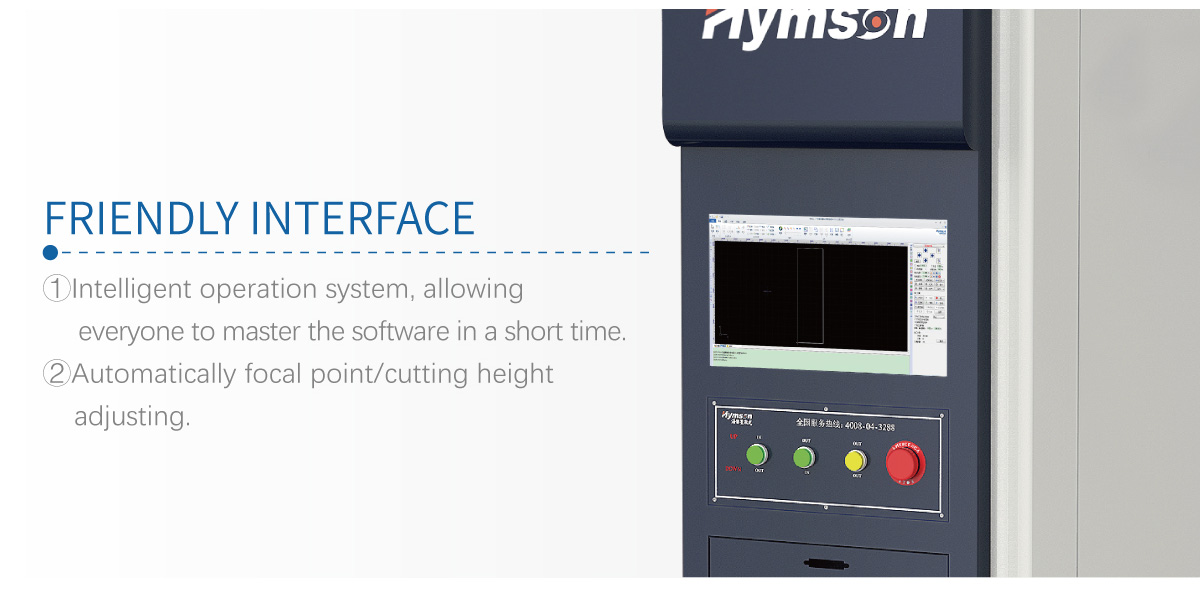

The equipment uses FSCUT laser cutting control system, equipped with a large screen display, and it’s a professional laser cutting system. Based on Windows operation system, FSCUT integrates a lot of laser cutting modules with special functions. Equipped with a wireless keyboard and mouse, the operation is simple and easy.
In order to facilitate the work of the operator, a space is reserved below the display for storing consumables and professional tools. The console has two USB connectors that can be used to connect removable memory devices such as flash drives to download drawings and programs. In addition, the machine also has a LAN connector for integrating the machine into a common network infrastructure.
Software
We provide full-featured Cypcut cutting software. This software is feature-rich, highly simplifies and optimizes the cutting process, significantly improving operator efficiency and productivity.
Engraving and cutting mode automatic switching function
The engraving and cutting modes are set individually by the operator before the cutting starts. The operator can reconfigure the machine and enter new settings without having to stop the material handling process. Switching between modes occurs automatically, which increases the productivity of the cutting complex.
The operator sets up before the start of processing and does not need to stop the material handling during processing.
Graphic operation function
CypCut provides common drawing functions, which can be easily used from the left drawing toolbar. Most of these drawing functions are similar to AutoCAD, and they are also very intuitive to use. The software has a variety of user-friendly graphics operating functions, simple and quick to get started.
Supports multiple files
Cypcut software supports graphic data formats such as AI, DXF, PLT, Gerber, and LXD, accepts international standard G codes generated by Master Cam, Type3, and other software, and automatically optimizes when external files such as DXF are opened/imported, saving time and efficiency.
Real-time frequency and power curve
In order to obtain high-quality acute and right angles, the software is equipped with real-time frequency and power curves, and the power of the laser radiation is automatically adjusted according to the speed of movement of the cutting head. When the cutting head is at zero speed (at the time when the corner is stopped), the output radiant power is equal to the minimum power set in the setting to prevent burnout of the corners.
Standard material library
Cypcut software reads the special material library, selects the corresponding material library parameters according to different materials, and modifies the storage operation.
Rich process layer interface
CypCut provides 16 layers, and each layer can be individually set including cutting speed, laser power, air pressure, cutting height and other process parameters. The color of each layer is unique, which is convenient for browsing and configuring cutting graphics parameters.
Simple software
The simplicity of the Cypcut software allows you to shorten the time the mid-level expert learns the basic work of the machine. The work cost of mid-level experts will be much lower than highly intelligent experts, which will have a positive impact on production costs. Cypcut software also offers free upgrades. The software also allows monitoring and control of the installation system: tracking systems, cooling systems, lasers, and viewing node logs.
Automatic Focus Control
The focusing lens drives a maximum acceleration of 10m/s2 and a maximum speed of 10m/min, which ensures that the focal point can be switched steadily during the cutting process. Especially important for the cutting of thick slabs.
Automatic Height Control
The BCS100 self-contained capacitor height adjuster (abbreviated as BCS100) adopts a closed-loop control method to control the laser-cutting capacitor follower and provides a unique Ethernet communication (TCP/IP protocol) interface. It is easy to implement high-speed automatic tracking and sharing with Cypcut software. Section perforation, progressive perforation, edge-seeking cutting, frog-leaping lifting, cutting head elevation setting, flight optical path compensation, etc. The BCS100 adopts a double-closed-loop algorithm with speed and position. Its performance, such as speed and accuracy, is significantly better than similar products at domestic and abroad market.
The following functions are implemented in the system:
Burning "jump".When the material burns, the optical head rises to the jumping height set by the operator. Since the head is raised, the metal melt does not fall on the nozzle portion, and cannot be led out or the entire optical head is malfunctioned. Cut further from the set distance.
Burn "fly". This method can significantly reduce the processing time of the sheet because it does not cut every detail individually, but instead cuts all the contours into a straight line. The high-speed optical head delivers the entire sheet line by line, cutting out the contours of the corresponding segments. Save time is especially noticeable when cutting perforated grids.
Opt.
| Control | |
|
Handheld Control |
The remote wireless remote controller allows the operator to perform the most operations from any convenient location: starting and stopping the program, lighting out, following, reversing the contour, increasing/decreasing the focal length, changing the feed rate, and outputting machine parts. |
| Gas Management | |
|
Compressor |
Screws, air-cooled, with sound-insulated housing, receiver, desiccant, and ancillary equipment for air cutting up to 16 atmospheres. |
|
Vertical low-temperature gasifier |
Used as a replacement for standard cylinders when used for cutting gas consumption increases. (eg: cutting stainless steel) |
| Safty | |
|
Operator safety glasses |
Direct, reflected and scattered laser beams may damage the operator's vision and may even lead to blindness. In order to protect the eyes from laser radiation, special protective glasses should be used. |
| Smoke Removal | |
|
Exhaust fan |
Used to remove the combustion products produced during the cutting process. |
|
Filter – Ventilation |
Filters - Ventilators are designed to remove suspended, fine and moderately dispersed dust and smoke from air during welding, metal thermal cutting, etc. |
| Spare Parts | |
|
Supplies accessories |
Protective glasses, nozzle. |
Sampie
Video
1mm aluminum 3000w
1mm brass 3000w
1mm mild steel 3000w
1mm stainless steel 3000w
4mm mild steel 3000w
5mm aluminum 3000w
5mm brass 3000w
6mm stainless steel 3000w
8mm brass 3000w
8mm mild steel 3000w
10mm aluminum 3000w
10mm stainless steel 3000w
14mm mild steel 3000w
20mm mild steel 3000w
1mm aluminum 1500w
1mm mild steel 1500w
1mm stainless steel 1500w
3mm aluminum 1500w
3mm stainless steel 1500w
5mm mild steel 1500w
6mm stainless steel 1500w
10mm mild steel 1500w
12mm mild steel 1500w
